 半导体制造/WAFER FAB >> 晶圆探针台

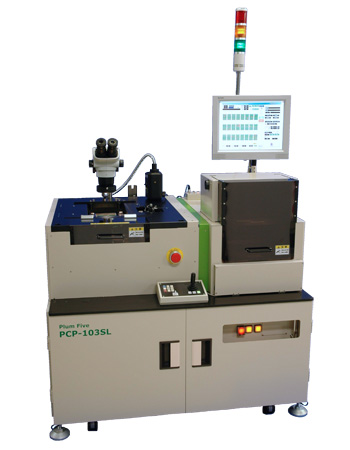

     晶圆探针台  Wafer Prober




Wafer size 100mm (4 inch) to 200mm (8 inch)
Probing area Wafer: φ200mm
XY stage Driven by linear motor (Repeat accuracy:1um)
Footprint Small space: (W)1200mm × (D)860mm





Wafer size 200mm (8 inch) to 300mm (12 inch)
Probing area Wafer: φ300mm
XY stage Driven by linear motor (Repeat accuracy:1um)
Footprint Small space: (W)1615mm × (D)1000mm

 WLCSP (特殊基板,QFN) 晶圆探针台




Film Frame size 2-8-1(φ200mm)
Supports 2-6-1 by changing chuck (OP)
Supports echo-ring, square ring (OP)
Probing area Wafer: φ200mm
Max: (X)214mm × (Y)214mm ※Contact us for detail
XY stage Driven by linear motor (Repeat accuracy:1um)
Footprint Small space: (W)1200mm × (D)860mm
